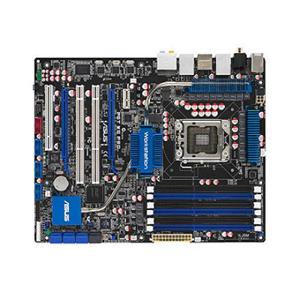

ASUS P6T WS PRO, 1366/X58, ICH10R, Triple DDR3/1333, 2xPCIe2.0/16,2xPCIe-X,6xSATA2/RAID,2xSAS/RAID, 2x eSATA, 2xGLAN,ATX
| Výrobce | ASUS |
|---|
| Kód | MBAU00994 |
|---|
| Part No. | 90-MIB6Q0-G0EAY00Z |
|---|
| Záruka | 36 Měsíce |
|---|
| Status | |
|---|
| Podrobnosti o produktu |
Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor/
LGA1366 socket for Intel® Xeon® processor 3500 Series
LGA1366 socket for Intel® Xeon® processor E5502/E5504/E5506
Supports Intel® Dynamic Speed Technology
*Refer to www.asus.com for Intel CPU support list
Chipset Intel® X58 / ICH10R
System Bus Up to 6400 MT/s ; Intel® QuickPath Interconnect
Memory 6 x DIMM, Max. 24 GB, DDR3 2000(O.C.)*/1866(O.C.)*/1800(O.C.)*/1600(O.C.)/1333/1066 ECC,Non-ECC,Un-buffered Memory
Triple channel memory architecture
Support Intel Extreme Memory Profile (XMP)
*Hyper DIMM (DDR3 1800MHz or above) support is subject to the physical characteristics of individual CPUs.
**Refer to www.asus.com. Or user manual for the Memory QVL (Qualified Vendor Lists.)
*** ECC memory support requires Intel® Nehalem-WS 1S W3500 series or Nehalem-EP E5502/E5504/E5506 processors
Expansion Slots 2 x PCIe 2.0 x16 (at x16 / x16 mode)
1 x PCIe x1
1 x PCI 2.2
2 x PCI-X
Multi-GPU Support Supports NVIDIA® 2-Way Geforce SLI or Quad-GPU SLI™ Technology*
Supports ATI® CrossFireX™ Technology
* SLI support may need driver update. Visit www.asus.com for more details.
Storage Intel ICH10R controller
6 xSATA 3 Gb/s ports
Intel® Matrix Storage Support RAID 0,1,5,10
Marvell 88SE6320 SAS controller
2 x SAS ports supporting SAS RAID 0, 1
Marvell 88SE6121 SATA controller
2 xExternal SATA 150/300 (SATA On-the-G0), supporting SATA RAID 0, 1
LAN 2 x Realtek® 8111C PCIe Dual Gigabit LAN controllers - Support teaming function
Audio ADI 2000B, 8 -Channel High Definition Audio CODEC
Multi-Streaming
Jack-Sensing
Front Panel Jack-Retasking
Coaxial / Optical S/PDIF out ports at back I/O
ASUS Noise-Filer
IEEE 1394 LSI Agere FW3227 controller supports 2 x 1394a ports
USB 12 USB 2.0 ports
ASUS Workstation Special Features G.P. Diagnosis Card bundled
ASUS SASsaby Cards support
ASUS WS Diag. LED
ASUS WS Heartbeat
SAS Onboard
Special Features EPU - 6 Engine
True 16+2 Phase Power Design
Turbo V
Fan Xpert
Express Gate
AI Nap
Q-Shield
Q-Connector
Fanless Design: Heat-pipe solution
Fanless Design: Stack Cool 2
My Logo 2
CrashFree BIOS 3
EZ Flash 2
C.P.R.(CPU Parameter Recall)
SFS (Stepless Frequency Selection)
O.C. Profile
Back Panel I/O Ports PS/2 KB/MS combo port
2 x RJ45
S/PDIF Out (Coaxial + Optical)
6 x USB 2.0/1.1 ports
2 x eSATA
1 x IEEE1394a
1 x 8-channel Audio I/O
Internal I/O Connectors 24-pin EATX Power connector
8-pin ATX +12V Power connector
Chassis intrusion
CPU fan with PWM control
Chassis fan1 with Q-fan control
Chassis fan2 with Q-fan control
Chassis fan3 w/o Q-fan control
PWR fan
CD audio in
3 x USB connectors support additional 6 USB ports
20-pin Panel connector
1 x IEEE 1394a port
TPM header
S/PDIF Out header
Front panel connector
BIOS 16 Mb Flash ROM
AMI BIOS, Green, PnP, DMI v2.0, Wfm2.0, ACPI v2.0a, SMBIOS v 2.4BIOS flash utility under DOS
Manageability WOL/WOR by PME, WOR by Ring, AI NET2, Chassis Intrusion
Support Disc AI Suite
ASUS Update
ASUS PC Probe II
Anti-Virus Software (OEM version)
Adobe Acrobat Reader ver 8.0
Microsoft DirectX ver 9.0C
Image-Editing Suite
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )
|
