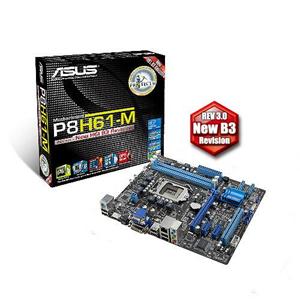

ASUS P8H61-M Rev.3.0,1155/H61,VGA,DVI,HDMI,Gbe,8CH,PCI-e 2.0/16,4xSATA2,DDR3/1333,mATX
| Výrobce | ASUS |
|---|
| Kód | MBAU01303 |
|---|
| Part No. | 90-MIBF20-G0EAY0GZ |
|---|
| Záruka | 36 Měsíce |
|---|
| Status | |
|---|
| Podrobnosti o produktu |
CPU Intel® Socket 1155 for Intel® 2nd Generation Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/
Support Enhanced Intel SpeedStep Technology (EIST)
Supports Intel® Turbo Boost Technology 2.0
* Refer to www.asus.com for Intel® CPU support list.
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Intel® H61(B3) Chipset
Memory 2 x DIMM, Max. 16 GB, DDR3 1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* According to Intel® SPEC, the Max. 16GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Please refer to www.asus.com or user manual for Memory QVL.
* When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots 1 x PCIe 2.0 x16
2 x PCIe 2.0 x1
1 x PCI
VGA Support dual VGA output: HDMI/DVI & D-Sub
- Supports HDMI™ Technology with max. resolution up to 1920 x 1200 @60Hz
- Supports Single-link DVI with max. resolution up to 1920 x 1200 @60Hz
- Supports D-Sub with max. resolution 2048x1536 @75Hz
- Supports DirectX 10.1
- Intel® Quick Sync Video Technology Support
Storage Intel® H61(B3) Express Chipset
4 xSATA 3.0 Gb/s ports
LAN Realtek® RTL8111E Gigabit LAN controller
Audio Realtek® ALC887 8-Channel Audio CODEC
- Optical S/PDIF out @back pannel
- Supports Jack-Detection, Front Panel Jack-Retasking(HD only)
* Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
USB 10 USB 2.0/1.1 ports (4 ports at mid-board, 6 ports at back panel)
ASUS Unique Features - 100% All High-quality Conductive Polymer Capacitors
- ASUS Turbo V
- Anti-Surge Protction
- ASUS EPU
- GPU Boost
- AI Suite II
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Overclocking Features SFS (Stepless Frequency Selection)
- Internal Base Clock tuning from 80MHz up to 300MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports 1 x PS/2 Keyboard/Mouse Combo port
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN(RJ45) port(s)
6 x USB 2.0/1.1
1 x S/PDIF Out (Optical)
3 x Audio jacks
Internal I/O Connectors 2 x USB 2.0/1.1 connector(s) support additional 4 USB ports
4 x SATA 3.0Gb/s connector
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x LPT connector
1 x S/PDIF Out connector
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x Front panel audio connector
1 x COM
1 x System Panel connector
BIOS 32 Mb Flash ROM , EFI AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI v2.0a, SM BIOS v2.6, Multi-language BIOS
Accessories 1 x I/O Shield
2 x SATA 3.0Gb/s cables
1 x User's manual
1 x Support DVD
Support Disc Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities
Form Factor uATX Form Factor
9.6 inch x 8.4 inch ( 24.4 cm x 21.3 cm )
|
