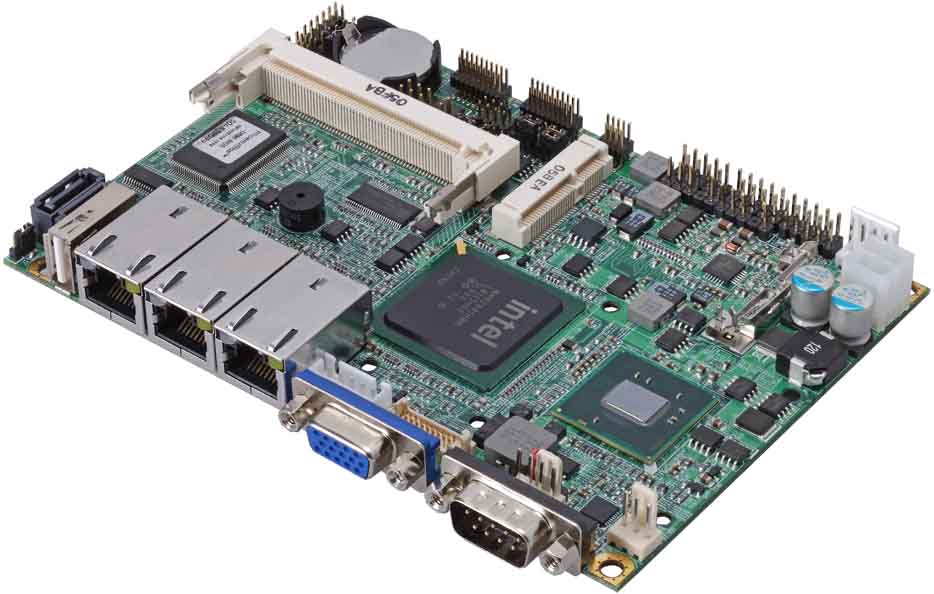

Commell LE-376G 3.5" miniboard Intel® AtomTM N450,3xGbe,1xPCIe mini,CF,2xSATAII,CF,SO-DIMM DDR2/667

Form Factor: 3.5" embedded board
CPU:Intel® Atom™ N450, 1.66GHz, 512KB cache  (LE-376G)
Package type : Micro-FCBGA (FCBGA559)
Memory: 1 x 200-pin DDR2-667 SO-DIMM up to 2GB (LE-376G)
1 x 200-pin DDR2-667 SO-DIMM up to 4GB (LE-376H/A/C)
Support Non-ECC, unbuffered memory only
Chipset: Intel® ICH8M
Real Time Clock: Chipset integrated RTC with onboard lithium battery
Watchdog Timer: Generates a system reset internal timer for 1min/sec ~ 255min/sec
Power Management: ACPI 2.0 compliant, supports power saving mode
Integrated Graphics: Intel® integrated extreme GMA 3150 Technology
Video Memory: Up to 384MB shared with system memory
LVDS Interface: Chipset Integrated 18-bit single channel LVDS
Serial ATA Interface: 2 x SATAII interface with 300MB/s transfer rate
Solid State Disk: 1 x Compact Flash Type-II
Audio Interface: Intel® ICH8M integrated with Realtek ALC888 HD Codec
LAN Interface: 3 x Intel® 82583V Gigabit Ethernet controller
Expansion Interface: 1 x PCIe mini card & 1 x Mini-PCI socket
Internal I/O Port: 1 x Audio, 4 x USB2.0, 1 x LVDS, 1 x LCD Inverter, 1 x LPT
1 x RS232/4224/5, 4 x RS232, 1 x SMBUS, 1 x IrDA
External I/O Port: 1 x USB, 3 x RJ45 LAN, 1 x DB15 VGA, 1 x RS232
Power Requirement: DC 9V ~ 24V input
Board Dimension: 146mm x 101mm
Temperature: Operating within 0~60 centigrade
Storage within -20~85 centigrade

Ordering Guide:
LE-376G: Support Intel® Atom N450 processor with onboard VGA, 18-bit LVDS, Audio, Giga LAN, USB2.0, SATA, CF, PCIE mini card
LE-376H: Support Intel® Atom D410 processor with onboard VGA, 18-bit LVDS, Audio, Giga LAN, USB2.0, SATA, CF, PCIE mini card
LE-376A: Support Intel® Atom D510 processor with onboard VGA, 18-bit LVDS, Audio, Giga LAN, USB2.0, SATA, CF, PCIE mini card
LE-376C: Support Intel® Atom D525 processor with onboard VGA, 18-bit LVDS, Audio, Giga LAN, USB2.0, SATA, CF, PCIE mini card
